Portable, Compact Parcel X-ray for Bombs, Weapons & Contraband RealClear® reveals components of a gun, knife, narcotics in bottle, and bomb in real time, without lags and delays. autoScale® displays contents at Pentium 4 resolution automatically and without distortion. User-friendly, ergonomic and fully-featuredoperator control panel.

Lower profile, array-on-top sharpens threat details and better fills the screen.

PREMNET is the leading worldwide producer of advanced, fast, reliable, X-ray, weapons and Trace Detection screening systems, easily integrated or leased. Visit us at www.autoclearus.com. Ask about our mobile, cargo dual-viewer backscatter systems.

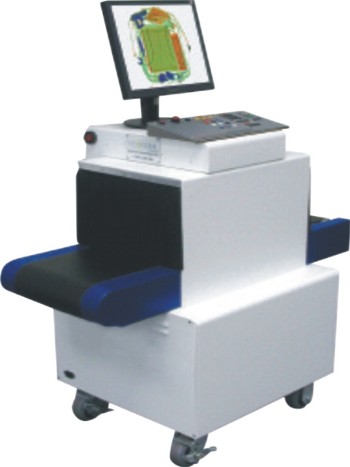

The PREMNET 4626 (46.0 cm wide x 26.0 cm high, 18.1” wide x 10.2” high opening) is compact, lightweight and ergonomic for briefcases, shoes, coats, mailbags, bins and parcels.

FEATURES

Very portable, compact and, affordable. Fits narrowhalls, spaces, and through any doorway. Ergonomic height and small footprint enhance security.

• Ideal size, penetration and throughput for mail, laptops, shoes, cell phones, coats, binned items, electronics, food, liquids, handbags, and cameras.
• Advanced, bright digital image. Folded array rapidly images full mailbags, long packages (posters, drawings) and taller items. Unlike high dose analog, door-based fluoroscopes with dull, monochrome, indirect views, the 4626 is fully film safeand will not cut off corners.
• Features Pentium 4, 17” monitor, RealClear®, autoScale®, autoDensalert®, autoOutline®, autoSensing®, autoCal®, 64X Smart Zoom, Lighten, Help, DensityScan, and Low Density Stripping, among other features.
• 90kV, 10-11mm penetration eliminates hand searches. Twice the penetration available in less portable systems costing more.
• Multi-Energy Color with Organic/Inorganic Stripping is popular. Half the radiation dose to parcels and contains with lower energy consumption. TIP, Training and Image Archiving autoSaves® images to DVD, CD or USB flash drive. autoMatalert®option highlights organic threat items.
• autoTracking® unique guided conveyor belt system never needs adjustment, lowering operating costs.
• Full autoSensing® eliminates use of troublesome Assures 100% screening of thin blades or plastique in magazines or overnight envelopes, or bag already in tunnel at start-up.
• Interactive training and highly responsive local service.
• Engineered, made and rigorously tested in North America to the highest ISO 9000 and regulatorystandards.

Schools • Courthouses

Correctional • Corporate

Mailrooms Embassies • Jails

Government Buildings

Special Events • Airports

Military • Banks • Police

Nightclubs • Offices

Parcels for Executives

Model 4626 Very Compact X-ray Specifications

Physical Details

Dimensions: See drawing

Weight: 410 lbs (186 kg) (including undercarriage)

560 lbs (254 kg) crated

Construction: Unibody heavy gauge epoxy painted

steel construction with stainless steel

and aluminum trim and accessories.

Corrosion-resistant command center

keyboard.

Environmental Temperature range: 32º- 104ºF,

Conditions: (0º- 40ºC ) • Humidity 20% - 95%,

non-condensing.

Storage to 65ºC (149ºF)

Electrical Power Consumption: < 0.7 kVA

Requirements: 100, 120, 230 volts AC + 10%, < 7 amps.

200, 220, 230, 240, 250 volts AC ± 10%,

< 3.5 amps. All at 50 or 60 Hz.

Overall Dimensions: 109.1 cm (43.0”) L x 58.4 cm (23.0”) W x 103.6 cm (40.8”) H

Inspection Capabilities

Tunnel Size: 18.1" wide (46 cm)

10.2" high (26 cm)

L-shaped detector for 100% package screening.

Material Penetration: 10-11 mm (0.39-0.43”) steel twice the penetration in its class.

Contrast Sensitivity: Over 2 million color tones standard.

Resolution: 40 AWG wire.

Processing: 32-bit adaptive image processing with minimum 128 Mbytes

memory; 800 MHz, 2.4 GHz or higher processor.

Conveyor Speed: 48 feet per minute; 24 cm per second. Fully reversible.

Pulling Weight: 100 kg (220 lbs) standard; 200 kg (440 lbs) option autoTracking®: Belt guaranteed to autoTrack for life.

Film Safety: Guaranteed for high-speed films up to ISO 1600 (33 DIN).

*Full autoSensing® without troublesome Reduces downtime and assures all magazines, envelopes or photo sensors, moving parts, or footpad. Items are scanned, no matter how thin, or of bag already in tunnel at start-up. Enhances radiation safety.

X-ray Generator

X-ray tube head: Self-contained

High voltage rating: 90 kV standard

Duty cycle: 100% with sealed oil bath cooling

Beam orientation: Diagonal (80º beam divergence)

Dose rate per exam: 0.1 mR. Lower doses available.

X-ray Detectors

Surface mounted, multilayer , fully integrated, high frequency, solid state detectors using high speed processors, and Pentium 4 image processing with Single Energy or optional Multi-Energy (M) Color.

Video

Standard with color 17” LCD flat screen monitor High resolution, flicker-free, low rad., low energy monitor, 1280 x 1024

video card. Single energy color is based on object density. Multi-Energy option available with second monitor, CRT(s)

or larger monitor(s), displays organics in orange and inorganics in blue, both overlapping in green and very dense

objects in black, and includes Organic and Inorganic Stripping.

Standard Features

• RealClear® • 1.5, 2, 2.5, 3, 3.5 4,6, 8, • Integrated undercarriage
• autoDensalert® 16, 32 and 64X smart zoom • Brushed alum. tunnel extensions
• autoTracking® • Dark & Light enhance • Helpscreens
• autoSensing® • DensityScan • Fast (25 second) initial warm-up
• autoOutline® • Color; Reverse B/W • Full-sized, friendly, robust keyboard
• autoScale® • High/Low Density & Stripping • Reversible direction & image
• autoCal® • High density • Non-marring castors

Options

•Multi-Energy (M) color material • CRT, dual or larger monitors • Locking monitor(s) hood identification with organic and • Locking metal keypad cover • Remote operation; printer or inorganic stripping • Clear Lexan tunnel extensions archiving cables

• Image Archiving with autoSave® • CE marking or UK approved • Built-in Training

to DVD, CD, or USB Flash • kV, mA meter or item counter • Rental or leases

• Threat Image Projection (TIP) • Power conditioner, or UPS • autoNet

• autoMatalert® • Longer Canadian or UK versions • TipNet

• Tropical Humidity Kit • Variable height
